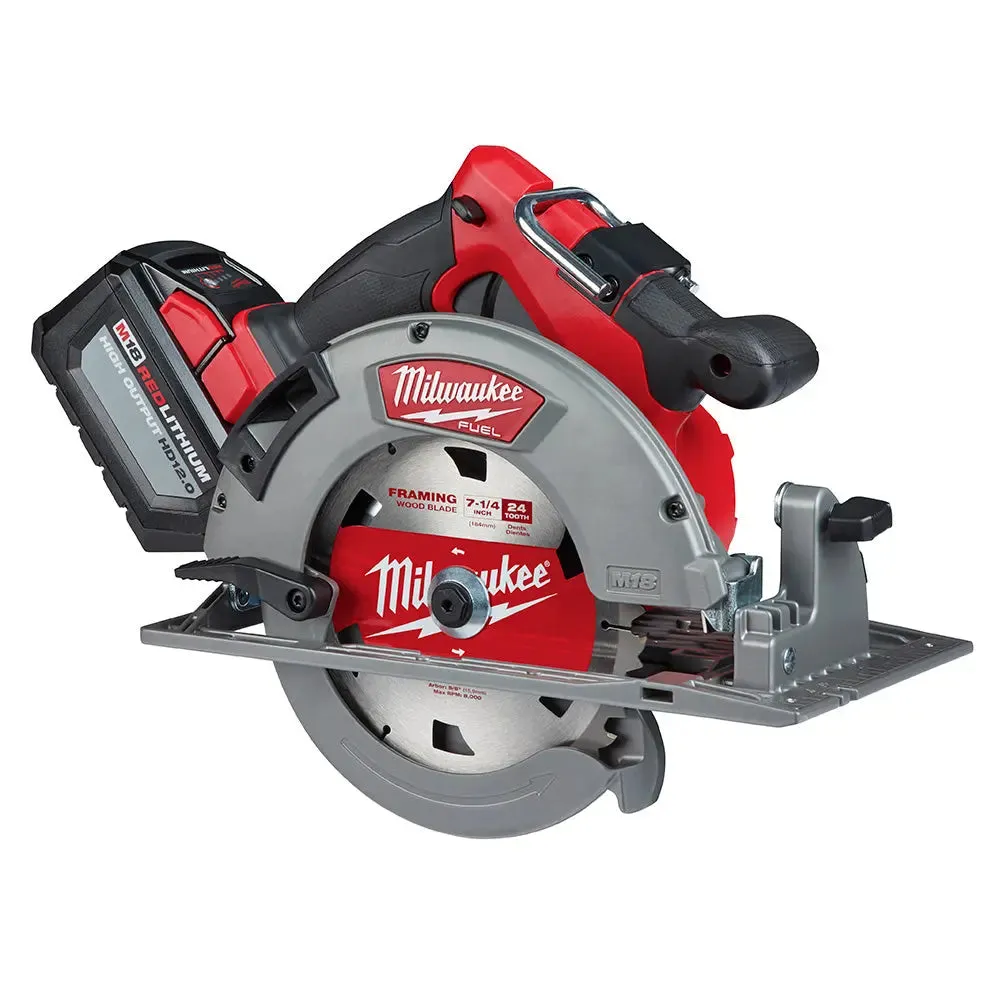

Designed for the carpenter, remodeler and general contractor the M18 FUEL™ 7-1/4 in. circular saw from Milwaukee generates the power of a 15 A corded saw, cuts faster than a 15 A corded saw and gives users up to 750 cuts per charge. The POWERSTATE™ brushless motor provides 5,800 RPM and higher speeds under load for corded cutting performance. REDLINK Plus™ intelligence ensures maximum performance and protection from overload, overheating and over discharge. The M18 REDLITHIUM HIGH OUTPUT™ HD12.0 battery delivers unmatched run-time in all applications. All magnesium guards and shoe delivers extreme durability for jobsite conditions. A built-in rafter hook offers quick and easy storage and an electric brake stops the blade quickly after cuts are complete for maximum productivity.
Features
- POWERSTATE™ Brushless motor: purposely built for the M18 FUEL™ 7-1/4 in. circular saw to generate the power and performance of a 15 A corded circular saw
- REDLINK Plus™ intelligence: ensures optimal performance and provides overload protection to prevent damage to the tool and battery during heavy applications while still maintaining compatibility across the entire M18™ system
- REDLITHIUM™ HIGH OUTPUT™ HD12.0 battery pack: provides 50% more power and runs 50% cooler versus standard REDLITHIUM™ HD packs. superior pack construction provides the industry's best protection against jobsite conditions
- Magnesium shoe and guards for maximum durability
- LED light for increased accuracy and visibility
- Integrated dust port on guard and included vac adapter
- Electric brake for stopping blade after trigger is released
- 2-1/2 in. of cut depth
- Compatible with all M18 batteries and tools
Includes

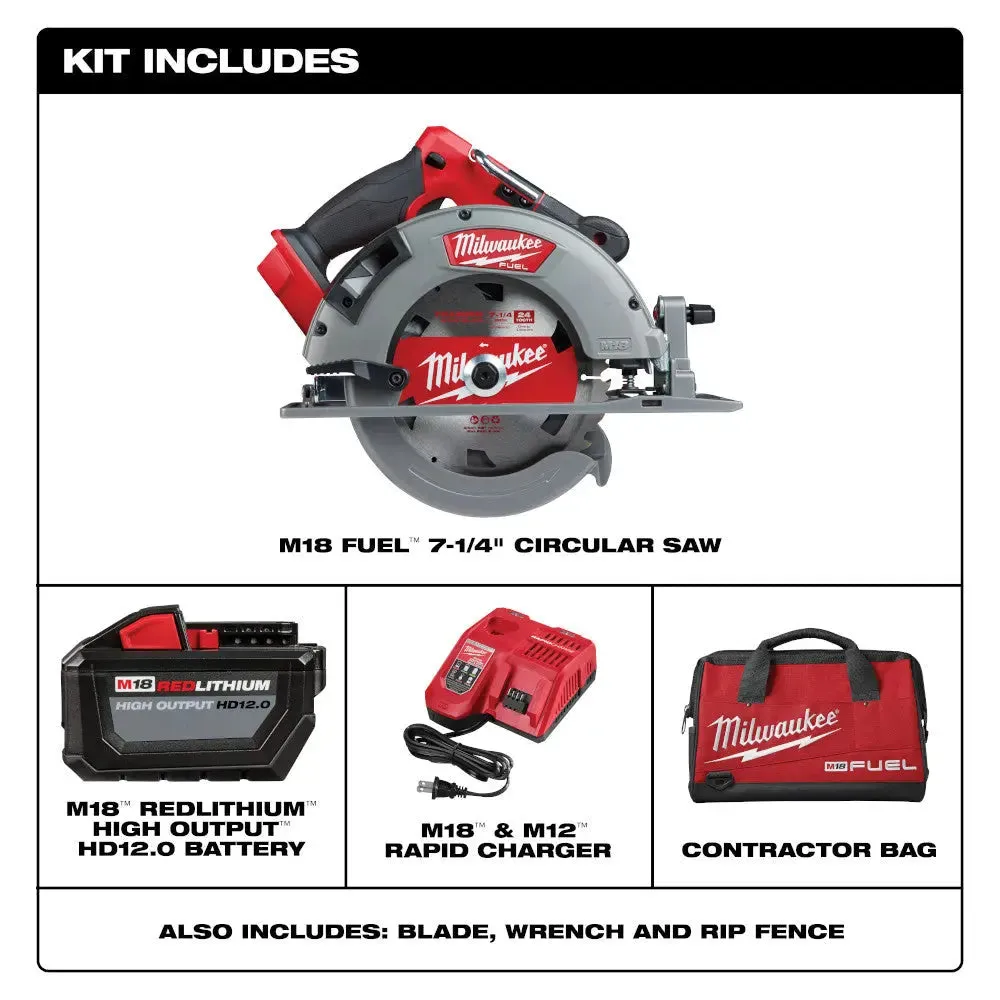

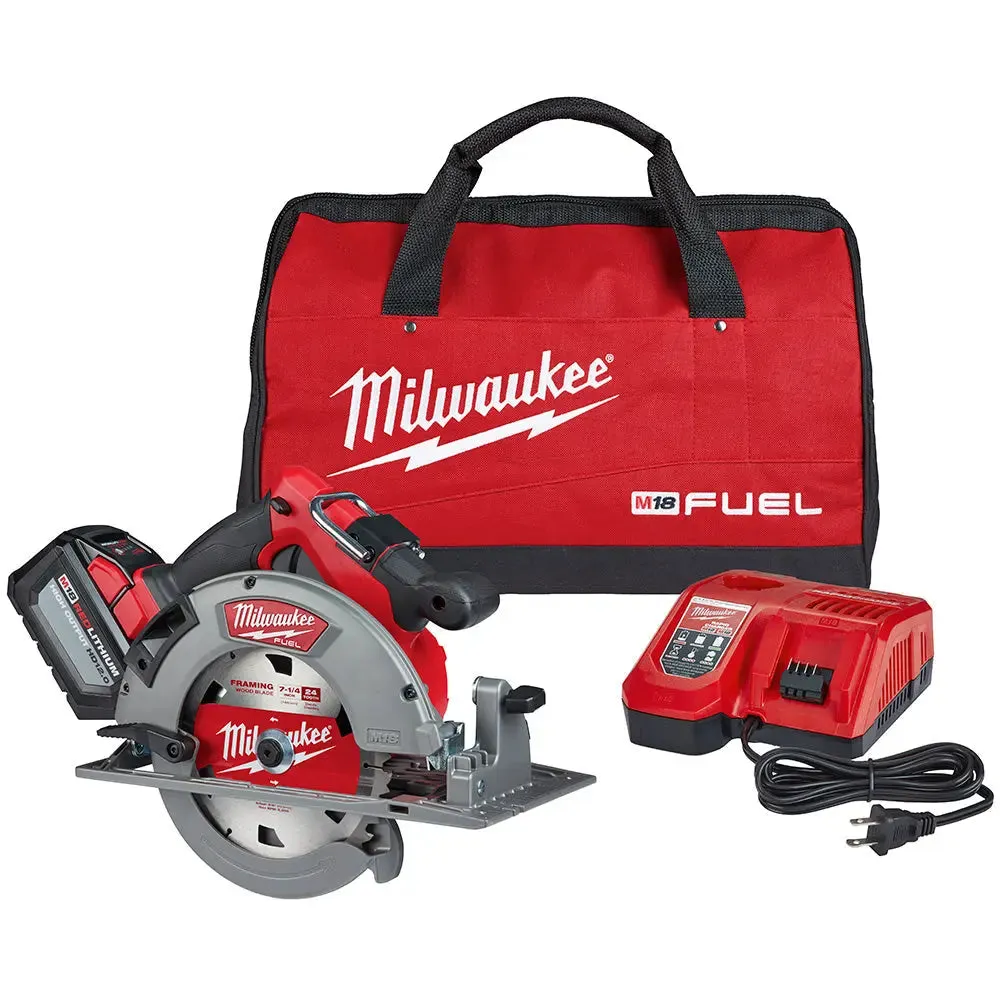

(1) 7-1/4" Circular Saw; Blade (2732-20); (1) M18 REDLITHIUM High Output HD12.0 Battery Pack; (1) M12 & M18 Multi Voltage Rapid Charger; (1) Wrench; (1) Contractor Bag
Warranty
5 Years (Tool), 3 Years (Battery)
Specifications
| Battery Capacity : | 12 Ah |
| Batteries Included / Bare Tool: | Battery Included |
| Blade Wrench Included: | Yes - Stored on Tool |
| Container Type: | Box |
| Weight - Battery Installed (lb): | 12.45 |
| Condition: | New |
| Number of Blades Included: | 1 |
| Batteries Included: | Yes |
| Blade Included: | Yes |
| Color Finish: | Black; Gray; Red |
| Battery Amp Hour (Ah) *: | 12 |
| Battery Charger Input Voltage *: | 120 |
| Battery Composition: | Lithium-Ion (Li-ion) |
| Battery Voltage *: | 18 |
| Bevel Capacity (°): | 50 |
| Recharge Time (min): | 2 |
| Includes Charger: | Yes |
| Integrated Work Light: | Yes |
| Maximum Cut Depth at 45 Degrees: | 1.875 |
| Maximum Cut Depth at 90 Degrees: | 2.5 |
| Number of Batteries Included: | 1 |
| Number of Batteries Required: | 1 |
| Product Storage Included: | Bag |
| Spindle Lock: | Yes |
| UL Listed: | Yes |
| Variable Speed *: | Yes |
| Weight Excluding Battery (lb) *: | 8 |
| Integrated Light *: | Yes |
| Battery Pack Replacement: | Any M18 Battery |
| Certifications and Listings: | cUL Listed |
| Dust Port Outside Diameter: | 1.875 |
| Electronic Speed Control: | Yes |
| Handle Grip Design: | D-Handle |
| Motor Type *: | Brushless |
| Product Type *: | Cordless Circular Saw |
| Battery Type: | Lithium Ion |
| Drive Shape: | Direct Drive |
| Electric Motor Brake: | Yes |
| Housing Material: | Glass Filled Nylon |
| Integrated Rafter Hook: | Yes |
| Safety /Lock-off: | Yes |
| Shoe Material: | Magnesium |
| Saw Drive: | Direct Drive |
| Battery System *: | M18™ |
| Blade Location: | Right |
| Handle Type: | D-Handle |
| Corded Cordless: | Cordless |
| Bevel Range: | 0 to 50 |
| Saw Blade Diameter: | 7-1/4" |
| Powered Tool Power Source: | Electric - Cordless |
| Depth Adjustment: | Yes |
